Spare parts Bezzera Galatea Domus
On this page you will find specific parts of the Bezzera Galatea Domus. The machine is equipped with an E61 group. All parts for the E61 group can be found on this page, the filters on this page and for the filter holder on this page.
O-ring steam pipe - steam tap universalOR between the nut of the knee joint of the steam/water pipe and the steam tap. There is also a teflon gasket available.
16 X 2 MM€ 0,75
Spring filterholder 58mmFor all machines with a 58mm filter (inner diameter = tamper diameter)
Replace this spring when your filters fall out the portafilter.
For E61 machines, Bezzera BZ series, QuickMill, Rancilio, Gaggia, Vibiemme, Marzocco, Cimbali…€ 0,75
O-ring steampipe universalThis ring is located at the bottom of the nut of the connection of the steam tap and fits in with many models of espresso machines. If the steam or water pipe moves stiffly, or if it leaks at the knee joint, replace this ring. We…
€ 0,95
Pump bendAngled coupling for an Ulka pump or output of a solenoid valve or OPV.
Lelit MC017
QuickMill GO3000PG€ 0,95
Rubber steampipe 10mmPrevent burnt fingers with this rubber cover for the steam pipe. For steam pipe with an outer diameter of 10 mm, tip for assembly: use a little bit of washing-up liquid so that the cover easily goes over the thickening of the…
€ 1,25
Lubricant for filter holder (Portion)With this special Molicote paste you lubricate your filter holder and group. Put the past under the ears of the filter holder and then you turn the filter holder into the brew group so that paste also comes in the tread. The paste…
€ 1,50
Pump suport Ulka€ 1,50
Closing gasket OPV Bezzera (new model)Closing gasket for adjustable overpressure valve Bezzera.
11 x 3 mm
BE 5493042
For Bezzera E61 machines > 30-10-2012
For Bezzera BZseries machines > 19-03-2013€ 1,75
Silicon pipe 4x7mm 1m (standard)If you choose several meters, we will deliver that as in 1 piece. For example, 3x1 meter is supplied as a piece of 3 meter
€ 2,95
Y-connector silicone pipeY connector for silicone hose. 5mm
Also available in a more solid brass version.
Bezzera 7303033
∙ BZ07
∙ BZ09
∙ BZ10
∙ Galatea Domus
∙ Giulia
∙ Hobby
∙ Unica
Lelit MC532€ 3,25
Closing gasket OPV Bezzera (old model)Closing gasket for adjustable overpressure valve of Bezzera.
8 x 4 mm
BE 5493001
For Bezzera E61 machines up to 30-10-2012
For Bezzera BZseries machines up to 19-03-2013€ 3,75
Ulka thermical fuse€ 3,95
Filter water tank BezzeraFilter for water tank ECM Mechanika/Technika III and Bezzera
1/4f
7374002€ 4,50
Pump self-priming bypassUsed in many espresso machines to drain off the air. Self-priming in counter pressure conditions.
Also available in a higher quality brass version.
Assemble with Loxeal or PTFE Tape or with an o-ring.
1/8m x 1/8f€ 4,95
Shower E61€ 4,95
Group gasket E61 8,5mm SiliconeSilicone group gasket, longer lasting material than the standard gasket.
For the brewing group of very many different machines: Including everything with an E61 brew group: ECM, Faema, Rocket, Vibiemme, Wega, Bezerra, Kees van…€ 6,95
Thermostat 135 degrees RESETABLEM4 thread, manual resettable.
ECM & Rocket C199901550
ECM Heidelberg B7434009
BZ 7434009€ 6,95
Handle E61 m8 walnutBeautiful elegant button for the control lever of your E61 brew group and/or for the levers of the lever tap (m8)
€ 7,95
Infusion valve complete 53mmUpper guide: 13mm
Lower guide: 26,5mm
Total length: 53mm
For all modern E61 brew heads, except Vibiemme€ 9,95
Level probe boiler 120mmThe boiler level probe is an essential part for a heat exchanger machine, when the insulation it is no longer good there is a risk that the heating element will come above the water level in the boiler. The probe must also be…
€ 9,95
Handle Walnut M12€ 11,95-21%
Group set E61Especially for E61 brwe group (ECM, Feama, Rocket, Vibiemme etc)
Maintenance kit, including:
∙ Shower 1x
∙ Supplement 0,5mm 2x!
∙ Filterholder gasket 8mm 2x!€ 15,85 € 12,50
Spindle tap ECM IIIMechanika/Technika 3 & Bezzera
overall length 65 mm
square pin 7x7 mmBEZZERA 5960502.02CM€ 13,45
Lever switch 4 poles 15 A4 poles 15 amp
For Vibiemme, Isomac, Ascaso, QuickMill 3000, Francis Francis, BFC Junior, Bezzera and many others€ 13,75
Pipe manometer 1/8 F x M12 F 50 cmBezzera
50cm
1/8 F -> manometer
M12x1 -> t-fitting
ARCADIA (201704-Rev.06), B2000-B2006 (200604-Rev.03), B2013 (201407-Rev.00), B2013AL (201407-Rev.00), B2016 (201706-Rev.03), B4000 (200805-Rev.01), B6000 (201407-Rev.00), BZ02…€ 13,95
Safety valve E61 boiler 1/2€ 14,95
Shower E61 IMS 200IM competition styleIMS is the standard for baristas that participate at competition level. You can now also place this shower in your E61 brew group. The surface is extremely smooth and the holes are perfectly distributed. An improved water…
€ 15,95
Pressure switch 16 ampère 1/4Thread 1/4.
PRESSURE SWITCH XP110 0,5-1,5 BAR G1/4
Adjust. press. range 0,5-1,5 BAR, pre-adjust. 1 Bar. 125°C, G1/4, 16A 250VAC.
There is also a more solid alternative€ 19,95-18%
Overhaul kit E61 brew group (gaskets)Kit for complete overhaul E61 brew group:
∙ Shower
∙ Supplement 0,5mm
∙ Filterholder gasket 8mm
∙ Valve gasket 3x
∙ Ring 1
∙ Ring 2 3x
∙ Ring 3
∙ Ring 4
∙ Group thread
∙ Rubber lever rod 2x€ 24,95 € 20,50
Manometer E61 brew group WhiteUpgrade your E61 brew group with this beautifull manometer. You can use the m6 tread on the front of you group, use tape of loxeal to avoid leaking. Ideal for espresso machines without a pump pressure manometer.
5530011
Pay…€ 21,95
Collector watertank ECM / BezzeraBezzera E61 models and ECM Mechanika/Technika III
5225228 and 7826206€ 22,95
Manometer E61 brew group BlackUpgrade your E61 brew group with this beautifull manometer. You can use the m6 tread on the front of you group, use tape of loxeal to avoid leaking. Ideal for espresso machines without a pump pressure manometer.
5530011
Pay…€ 24,95
Steam pipe BezzeraBezzera BZ07, BZ09, BZ10, BZ13, BZ16,BZ40, GIULIA, MAGICA, MITICA, STREGA, UNICA
€ 24,95
Pipe boiler-water tap Bezzera/ECMIIIBezzera E61 or ECM Mechanika/Technika III espressomachine.
5162233LL€ 26,95
Naked filterholder E61Get the best shots from your espresso machine with this naked filterholder (open filter holder) Use this in combination with the standard supplied 21 gram filter and see how the crema comes out the filter. In addition, the naked…
€ 29,95-14%
Pump Ulka EX5 230volt€ 34,95 € 29,95
Shower IMS E61 MatrixThe MATRIX® shower is made of 316L s.steel plate, composed of 50 layers of micro pheres, creating tens of thousand of routes, as narrow as 4-5 microns. This allows a homogeneous distribution of the water on the coffee disk. The…
€ 32,95
Relay Bezzera€ 37,95
Heating element 32mm 1250 watt with gasketThread: 32 x 1,5 mm
Length: 160 mm
220/240 volt
1250/1450 watt
For Bezzera E61 and BZ machines and ECM Technika/Mechanika 3
Bezzera code 5722240TP€ 39,50
Pressure switch 1/4" incl. empty and safety valvePressostat including overpressure and vacuum valve used in most Bezzera models. On models from the BZ series, the open connection on the side is used for the pressure gauge. This exit is not used with the E61 machines, we supply a…
€ 47,50
Adjustable over pressure valve (OPV) Bezzera & ECMIIIOPV and non return valve included, for Bezzera and ECM 3rd generation
5965212.01AL€ 47,95
Water tank Bezzera / ECM€ 49,95-27%
Overhaul kit E61 brew group (complete)Kit for complete overhaul E61 brew group:
∙ Shower standard, Shower IMS IM200 or Shower IMS Matrix
∙ Supplement 0,5mm
∙ Group gasket 8mm standard or group gasket 8,5mm silicone
∙ Ring 1
∙ Ring 2 3x
∙ Ring 3
∙ O-ring…€ 89,95 € 65,95
Pressure switch 20 ampere SiraiCE -UL Approv. 3 poles. Male thread G 1/4 for pipe d.4x6 mm, adjust. pressure range 0,5 ÷ 1,4 bar, max breaking capacity: 20A – 400V a.c. (AC1)
P303/T01€ 68,95
Heat Exchanger Bezzera Magica/MiticaFor Bezzera Magica, Mitica, Strega and other E61 models. Also suitable for ECM machines made by Bezzera
5329020DC-AL
connection ø 1 "M
3 connections ø 1/8 "F
immersion depth 147 mm
overall length 158 mm
brass body ø 28 mm€ 79,95
Steam tap "push" BezzeraThis allows you to convert your Bezzera from the normal steam / water taps to the so-called push taps. By operating the levers you immediately have water or steam.
€ 79,95

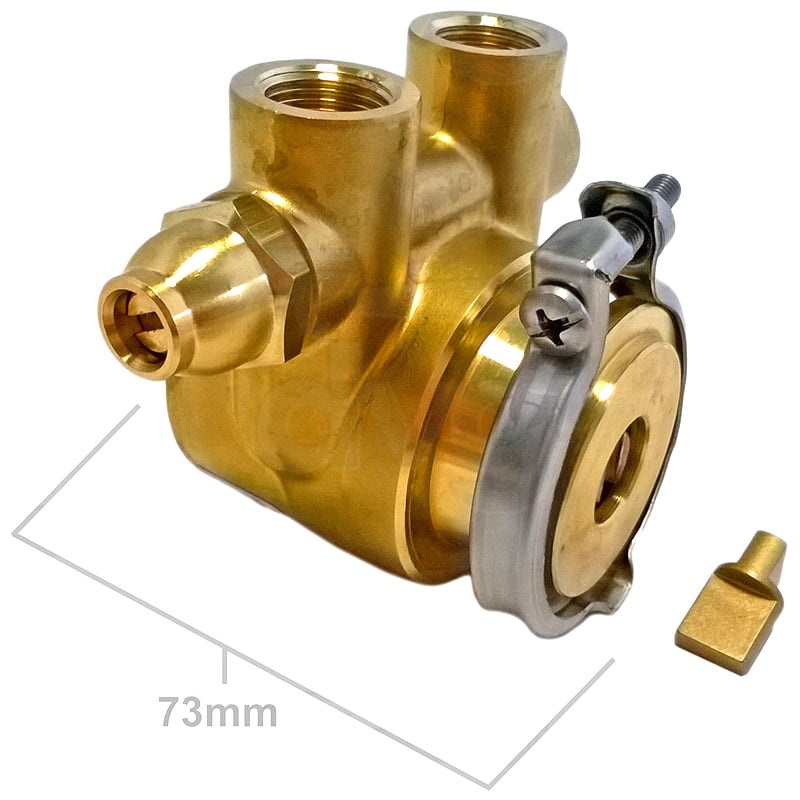

Pump professional "Procon 100 lt/h" compactCompact pump for installation in semi-professional espresso machines.
Yield 100lt/h.
To be mounted on the motor with the supplied clamp, pressure adjustable.
Length from pump 60mm
We call this a Procon pump, because this is…€ 89,95
Controlbox Gicar 9.1.24.20G RL30/4ESS/FECICB7661034.0
BZ 7661034.01
Gicar 9.1.24.20G
RL30/4ESS/F
ECM Technika/Mechanika 3 and Bezzera machines€ 92,50
Boiler Bezzera Magica/MiticaBezzera Magica, Mitica, Strega and other Bezzera E61 machines
5320501.02BL€ 325,00
